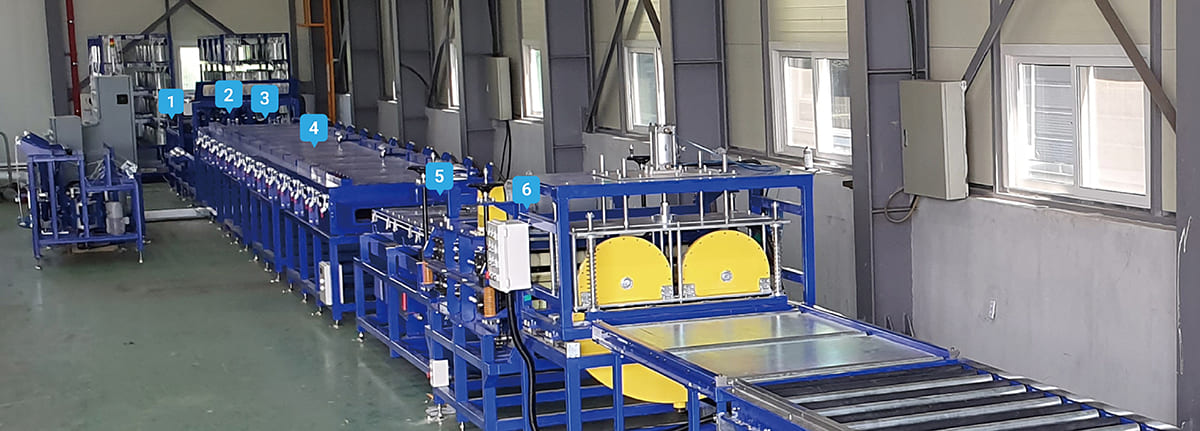

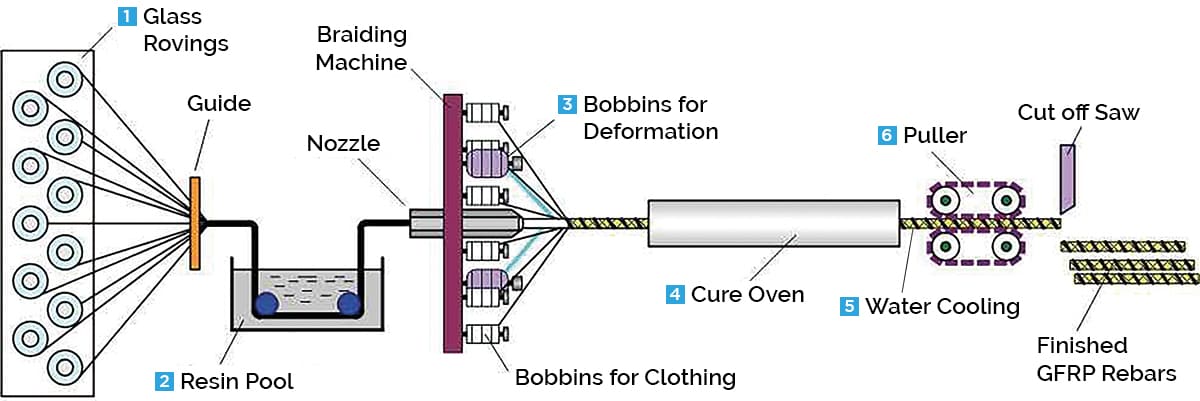

Manufacturing Process

• 1

  Raw Material Roving

• 2

  Resin Impregnation and Molding

• 3

  Winding System

• 4

  Heat Strengthening in an Oven

• 5

  Cooling System

• 6

  Caterpillar

• 1

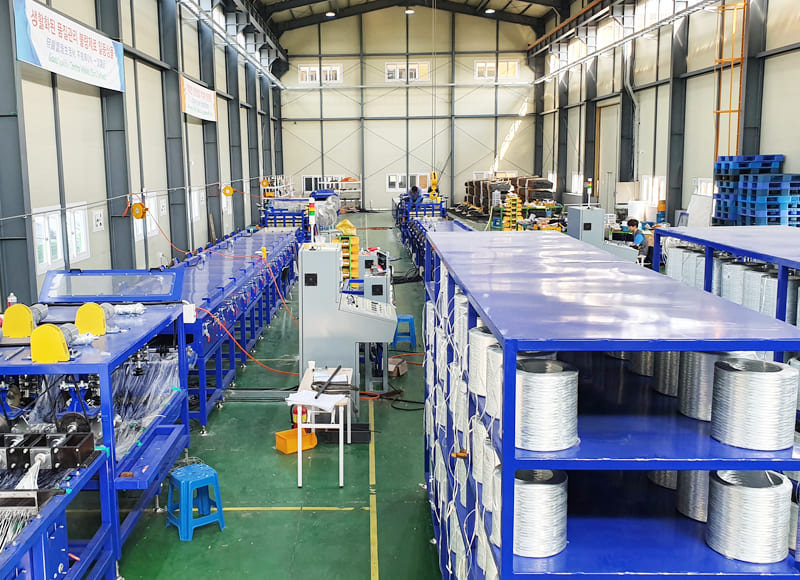

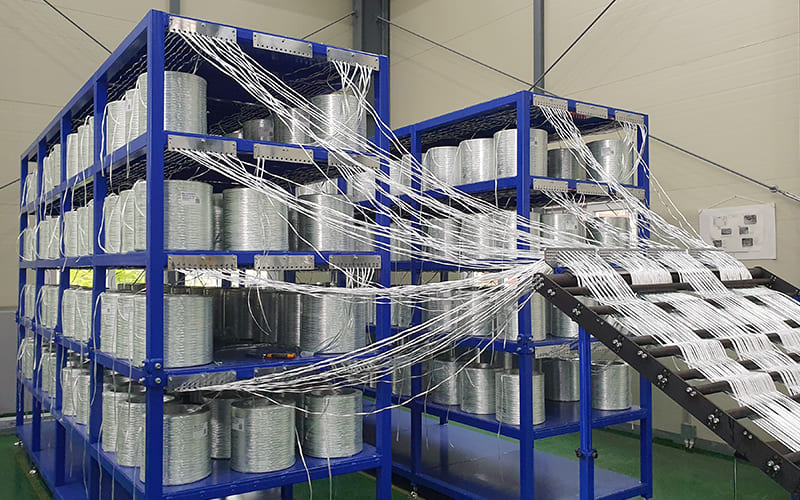

  Creel Table (Table Loading Yarns)
  - A table to load materials for smooth supply of glass fibers during work.
• 2

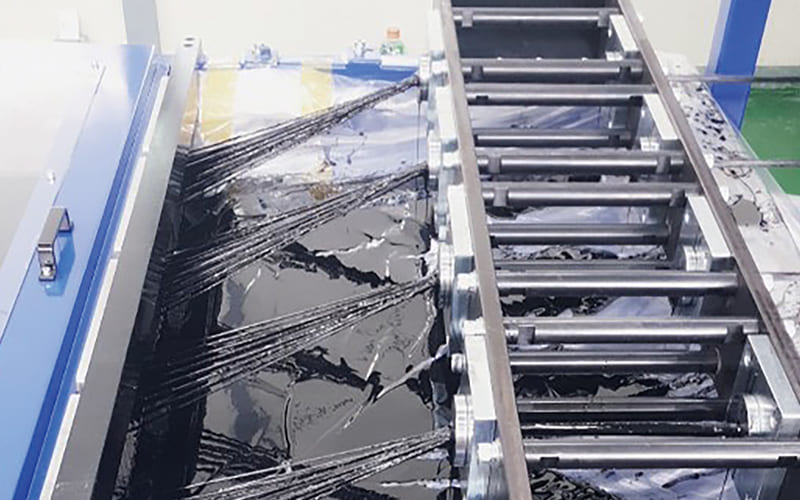

  Resin Impregnation
  - It is the first molding step to pass through molds (with different thicknesses) after mixing resin and glass fiber.
• 3

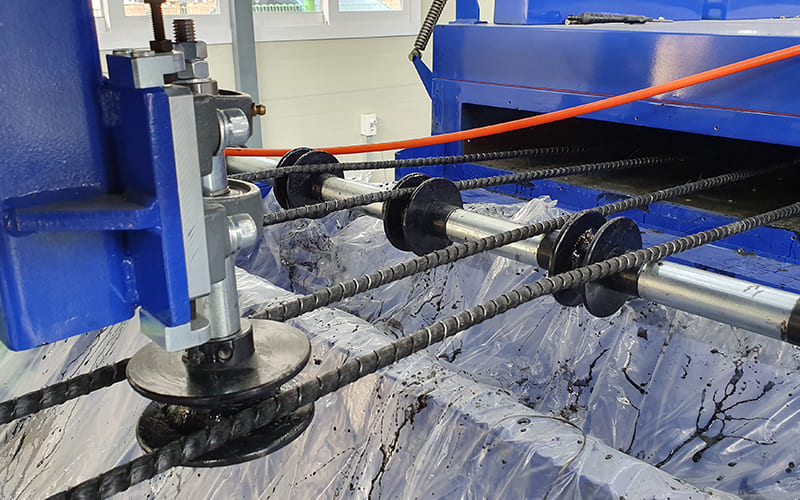

  Rib Winding
  - It is the second molding step of a rib shape to increase the strength.
• 4

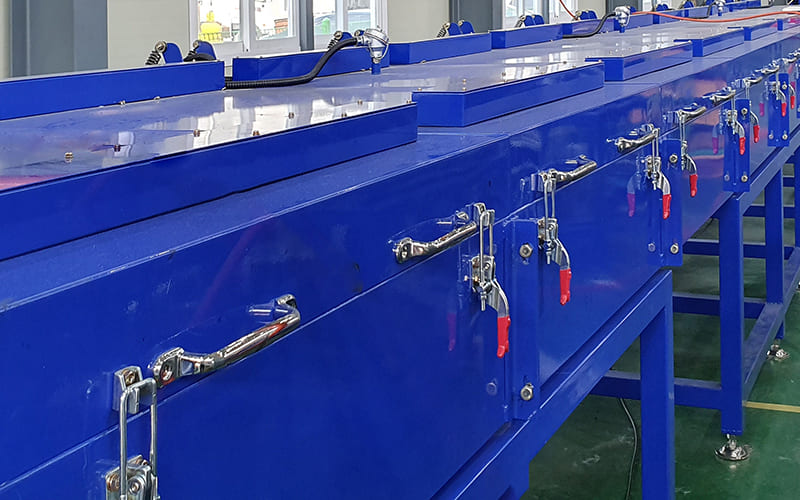

  Oven (Hardening Furnace)
  - It is the first hardening step to harden GF-REBAR by heating the oven.
• 5
  Cooling Bath
  - It is the second hardening step to cool down the heat with coolant.
• 6

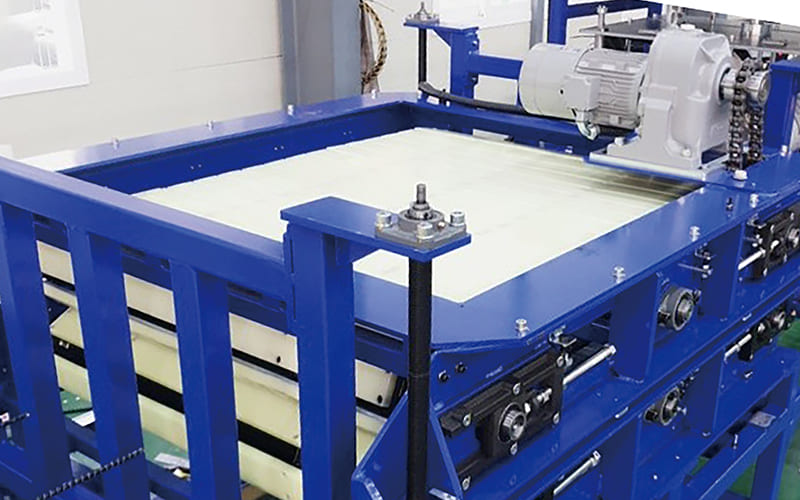

  Drawing Machine (Caterpillar)
  - It is used for an important process that plays a role in forming ribs, which is for line speed and regular intervals.
